RCBO 3P+N

RCBOs of range 6000 have more compact dimensions than the same types of devices usually available in the market: the depth of the products is 54mm instead of the more common 68mm, thus making the devices suitable for the installation in any panels.
Additionally, the lever is built in the products’ plastic body, making the RCBOs even more compact.



These features suggest the usage of range 6000 RCBOs in several cases of retrofit, when dimensions are rigidly imposed, or in all those applications where compactness is a must.
RCBOs’ functioning is independent from line voltage and its mechanism is trip-free, that is the RCBOs can also trip when the lever is held in ON position.
All products can be power supplied from both the top and the bottom terminals. Furthermore “cage” type terminals facilitate connection both through conductors (up to 35 mm² rigid and 25mm² flexible) and through busbars (both pin or fork types).

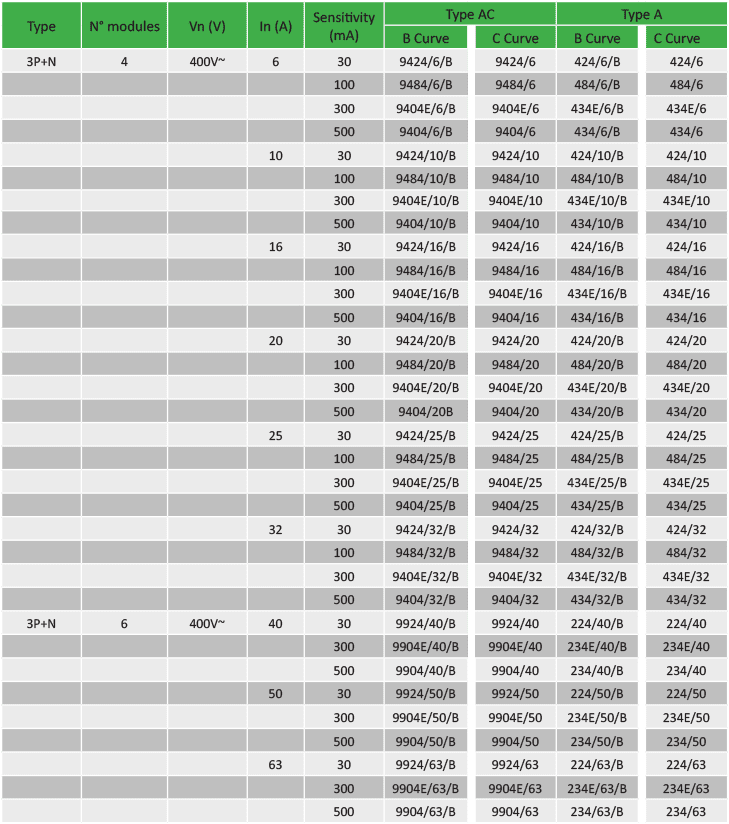

Range 6000 includes RCBOs both type A and AC and with sensitivities 30-100-300-500mA.
